OVERVIEW

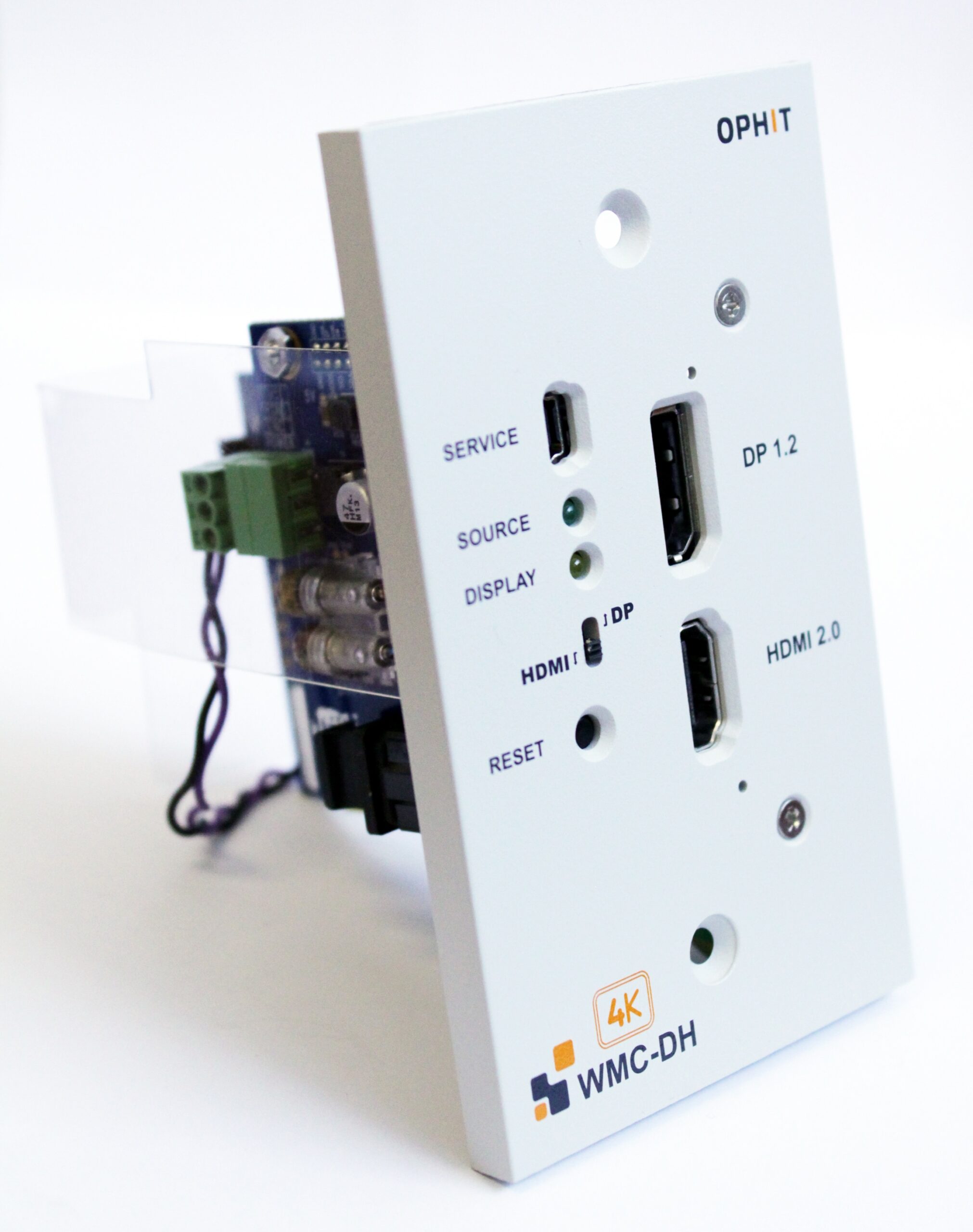

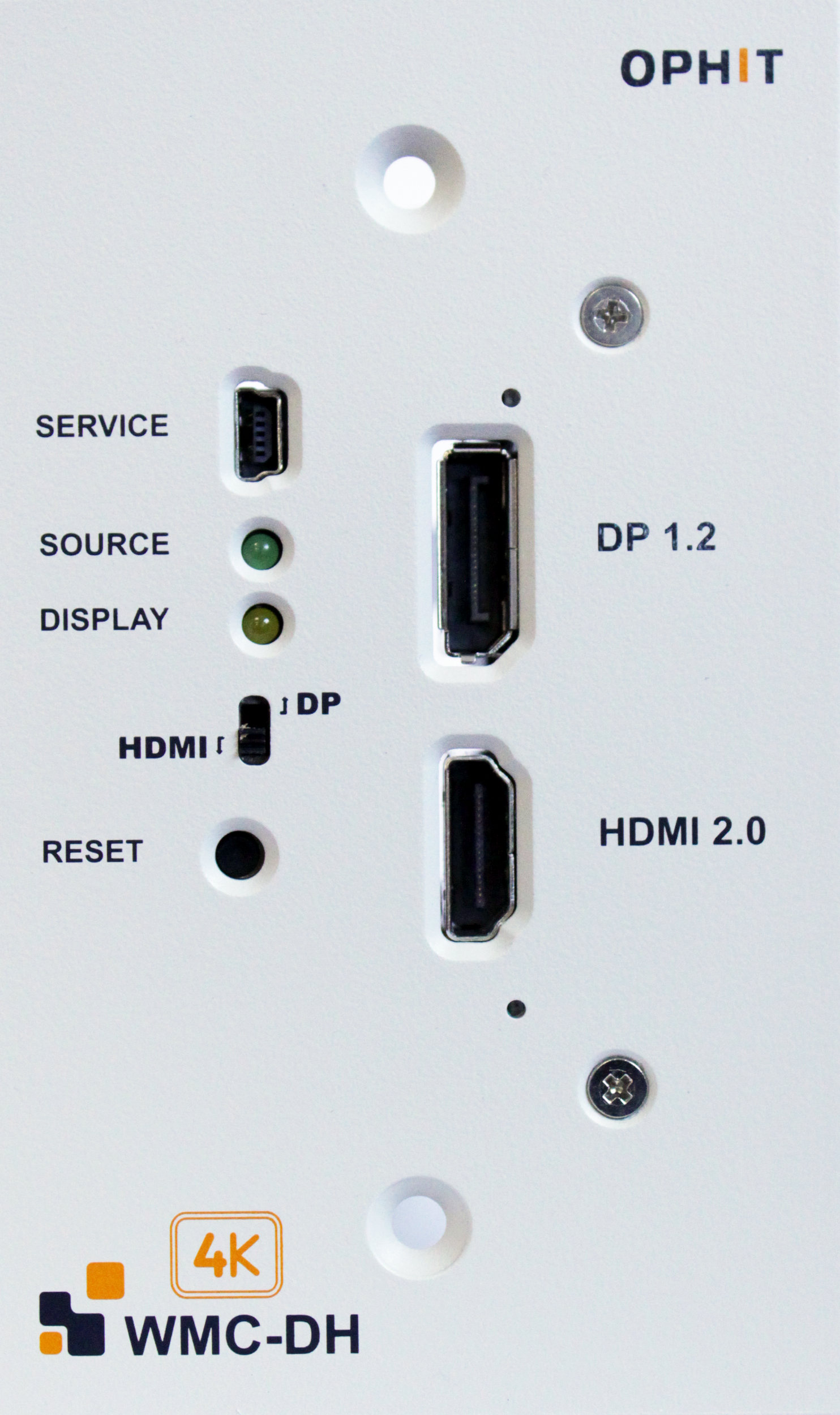

Ophit’s Newly launched wallplate video signal converter, WMC-DH, is an MPO/MTP-type wall plate video signal converter with an option to manually select the HDMI 2.0 or DisplayPort (1.2) input switch, transmitting high-speed data through HDMI 2.0 TMDS-compatible optical signal, producing high resolution up to 4K@60Hz with no signal degradation.
The newly launched wallplate video signal converter connects to the OMP-HM (Receiver) via MPO-type optical cable for up to 100m (330ft) of uncompressed data transmission. Specifically designed to be mounted in a single gang enclosure, the WMC-DH provides zero latency and offers high-speed video signal transmission solutions for surgical boom systems in the OR suite.
▪ Supports HDMI 2.0 and DisplayPort 1.2 Standard
▪ Designed to mount in a single gang slot
▪ Transmits a converted optical signal using one MPO-type optical cable
▪ supports firmware updates via mini-b USB port
▪ Equipped with one push switch to reset system
OTHER APPLICATIONS
▪ Broadcast / Control Room / Large Auditorium / Live Stage / Medical Imaging / Military / Flight Simulation / Conference Room
TECH SPECS
▪ Fiber Cable: MPO/MTP, 8 (or 12)-core, OM3, 50/125μm multi-mode fiber
▪ Input Data Rate: Up to 18 Gbps (HDMI 2.0) | Up to 21.6 Gbps (DisplayPort 1.2)
• Outpu Data Rate: Up to 18 Gbps (HDMI 2.0)
▪ Optical Connector: 1 x 4 Array 850nm VCSEL, 1 x VCSEL, 1 x PD
▪ Input Signal / Connector: 1 x HDMI (Type A Female Connector) | 1 x DisplayPort (20P Female Connector)
▪ Output Signal / Connector: 1 x MPO-Type (Optical Female Connector)
▪ USB Connector: 1 x Mini USB-B (Female Connector)
▪ Video Resolution: Up to 4K@60Hz
▪ Power Consumption: 1 x External Power Supply (DC +5V to +12V)
• Power Connector: 1 x 3.5mm (0.14″) Pitch 3-Position Terminal (JIEKT / JK35OR-03P)
CONFIGURATION
***NOTE: The Installer must supply power to the WMC-DH (Wall Plate)
