Optical Bi-Directional 1Ch Extender DVI (DSP)

DSP

DSP is an optical DVI extension module that is designed to transmit HD video signal over 300 meters (1,000 ft) on DVI standard. It can transmit EDID data on HDCP over fiber in real-time. DSP can be used with HDMI standard devices such as Blu-ray, game councils, and others, as well as DVI devices.

Connector:                 DVI-D (male) / SC connector (Female)
Optical Fiber:            1 ch / Multi-mode
Pixel clock:                 225MHz (single link)
Resolution:                WUXGA(1920 x 1200) @ 60 Hz, 1080p(1920 x 1080) @ 60 Hz
Distance:                    300M (1,000 ft)

Downloads

Brochure

Overview:

DSP, an optical DVI extension module, is designed to let digital flat panel display extend over 300 meters (1,000 feet) away from the host based on DVI standard by optical transmission technology. It can transmit EDID data and HDCP over fiber in real-time. DSP can be used with DVI devices as well as HDMI standard devices such as Blu-ray players, and PS-3 as well as DVI devices.

Features

• High speed and long-distance transmission by 1 channel SC type multi-mode optical fiber
• Supports resolution up to HDTV / 1080P, PC / WUXGA (1920 x 1200)
• TMDS video signal and EDID data are transmitted over optical fiber
• HDCP compliant
• Uses a slim and light Aluminum case
• EMC & Safety: CE, FCC, UL



Tech Specs:

• Connector (transmitter): DVI-D (male), SC connector (female)
• Connector (receiver): DVI-D (male), SC connector (female)
• Optic fiber : 1ch / Multi-mode
• Pixel Clock : 225MHz (single link)
• Supporting Resolution & Distance :
– WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft)
– 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)
• Power Consumption (transmitter): 1.3W (max)
• Power Consumption (receiver): 1.1W (max)
• Power Supply (transmitter): Optional
• Power Supply (receiver): 100~240V DC 5V, 2A
• Dimensions : 40W x 60D x 14H (mm)
• Operating Temperature range : 0°C ~ 50°C
• Storage Temperature range : -20°C ~ 70°C



Configuration:



Ordering Information:

Package
• Transmitter, Receiver
• 1 Power Adapter (for receiver)
• User’s manual

Ordering Information
• DSP-M: Transmitter, Receiver, and power adapter

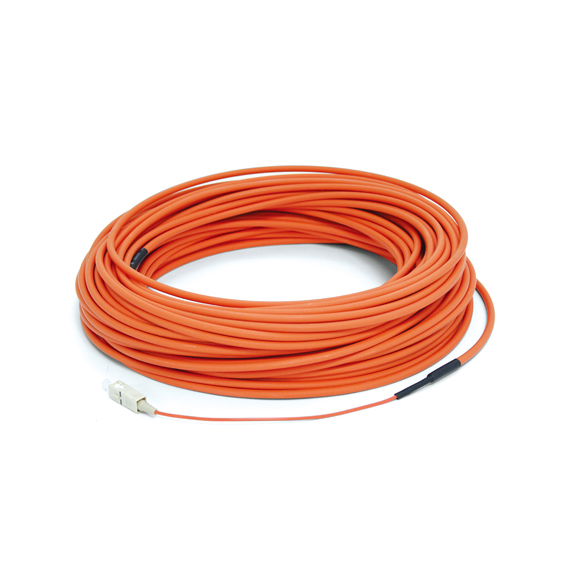

• DSP-AXXX : Transmitter, Receiver and power adapter + Multi-mode 1ch optic fiber XXX meters
