Overview

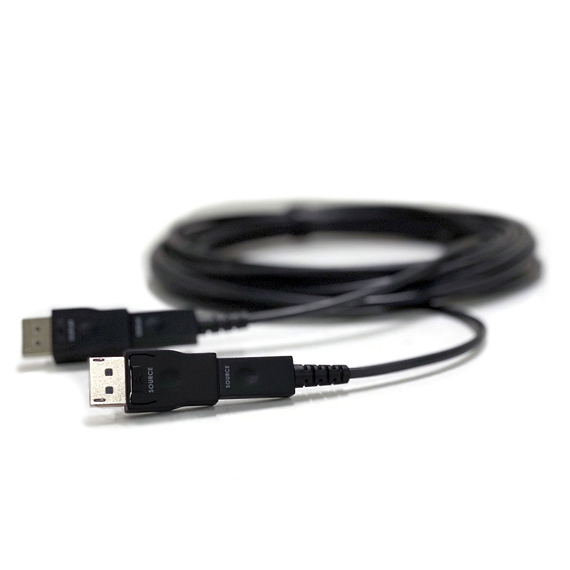

FTAD2 is a detachable AOC (Active Optical Cable) for DisplayPort standard. The FTAD2 consists of a transmitting and receiving parts, both of which are connected by a hybrid cable (Optical cable + electric cable). The FTAD’s transmitter is connected to the Display Port source device, and the receiver is connected to the DisplayPort sink device. The mini-Displayport connector can also be used by connecting each source and sink device. With FTAD2, Video/audio signals can be transmitted up to 100m when a system using DisplayPort standard is used. It is possible to transmit the DisplayPort specification signal of the UHD bandwidth without loss.
Features
▪ High speed and long-distance transmission by optical system
▪ Input and Output Signal : DisplayPort 1.2a/1.4 Standard by VESA
▪ MMF optical fiber + copper hybrid cable structure
▪ DPCD/HDCP compliant
▪ AUX and Hot Plug channels are transmitted by copper line
▪ Maximum transmission distance: 100m
▪ Connector: DisplayPort 20pin (Male) or Mini-DisplayPort Plug
▪ Mini-DisplayPort (Source) to Mini-DisplayPort (Display) connectivity is possible
▪ No external power supply required
Tech Specs
• Connector (transmitter): DisplayPort 20pin (male) or Mini-DisplayPort Plug
• Connector (receiver): DisplayPort 20pin (male) or Mini-DisplayPort Plug
• Applied Fiber: 50/125 ㎛ Multi-mode glass-fiber
• Video Bandwidth : 32.4 Gbps(HBR3)
• Supporting Resolution & Distance
– 7680X4320@60Hz / 100M (328ft)
• Power Consumption (transmitter): 0.122W (Typ)
• Power Consumption (receiver): 0.264W (Typ)
• Module Dimensions
-66.5(W) x 19.8(D) x 11.9(H)mm
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
Configuration
Ordering Information
Package
• FTAD2
• User’s manual
Ordering Information
• FTAD2-AXXX : FTAD2 Cable XXX meters (Max. 100m)
