Overview:
OPHIT’s DDL with fiber optical cable system lets your digital flat panel display extend up to 1,000 meters (3,300 feet) from the host by TMDS digital signal transmission.
Features
• High Speed and long-distance transmission by 4 channel LC type multi-mode optical fiber
• R G, B, Clock signal is transmitted separately over optical fiber
• Support up to WUXGA (1920 x 1200) and 1080p (1920 x 1080)
• Self-detecting function for EDID information
• EMC & Safety: CE, UL, FCC
Tech Specs:
• Connector (transmitter): DVI-D (male), LC connector (female)
• Connector (receiver): DVI-D (male), LC connector (female)
• Optic fiber : 4ch / Multi-mode(50/125μm)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution & Distance :
– WUXGA (1920 x 1200) @ 60Hz / 500M (1,650ft)
– 1080p (1920 x 1080) @ 60Hz / 500M (1,650ft)
• Power Consumption (transmitter): 0.65W (max)
• Power Consumption (receiver): 1.15W (max)
• Power Supply (transmitter): Optional
• Power Supply (receiver): 100~240V DC 5V, 2A
• Dimensions : 40W x 70D x 15H (mm)
• Operating Temperature range : 0°C ~ 50°C
• Storage Temperature range : -20°C ~ 70°C

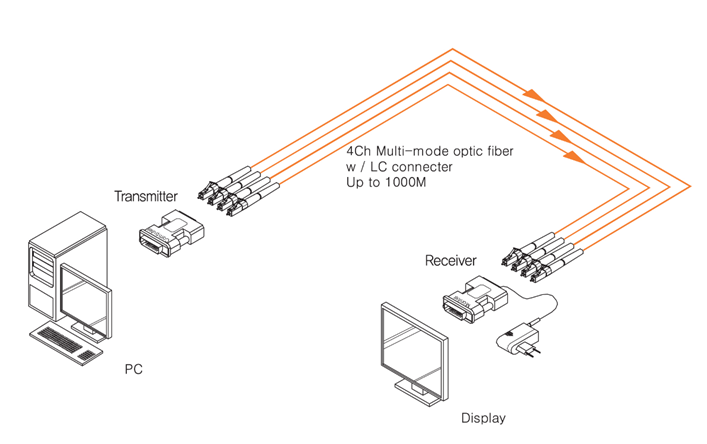

Configuration:
Ordering Information:
Package
• Transmitter, Receiver
• 1 Power Adapter (for receiver)
• User’s manual
Ordering Information
• DDL-M: Transmitter, Receiver, and 1 x power adapter
• DDL-AXXX : Transmitter, Receiver and 1 x power adapter + Multi-mode 4ch(LC connector) optic fiber XXX meters
