Overview:
Features
• Wall plate type optical converter
• Converts VGA signal to optical signal for transmitting high-resolution video signal to a remote location
• Transmits video signal up to 500M by 1ch multimode fiber
• Works cooperatively with DSL receiver model
• Dual color LED power indicator provides power and signal presence indication
• An ideal solution for clean, professional cable organization and termination
Tech Specs:
• Input
– Format: VGA
– Supporting Resolution: 1920 x 1200 / 1080P @ 60Hz
– Connector: 1 x D-sub 15pin
• Output
– Format: DVI (single link)
– Supporting Resolution: 1920 x 1200 / 1080P @ 60Hz
– Optical Fiber: 1 x SC
– Using Fiber Type: Multi-mode 50/125 or 62.5/125µm optic fiber
– Transmission Distance: Max 1,650ft (500meters)
• General
– Dimension: 115W x 70D x 90H (mm)
– Power Consumption: 2.8W
– Power Supply: DC 12V, 1.5A 3.5mm pitch 3position terminal (Phenix Contact)
– Enclosure Type: AL, Silver

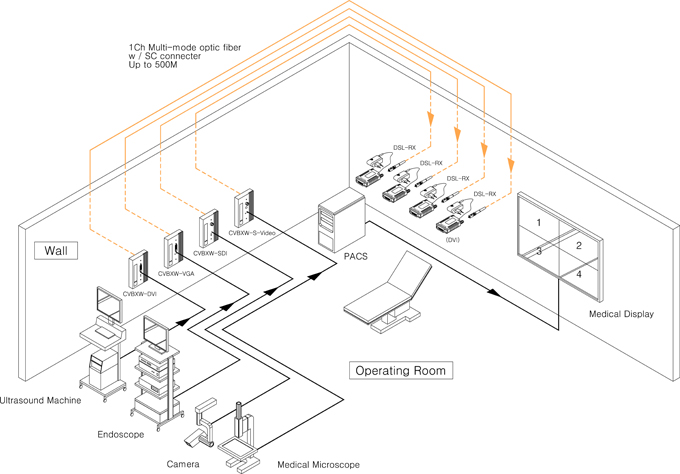

Configuration:
Ordering Information:
Package
• CVBXW-VGA
• User’s manual
Ordering Information
• CVBXW-VGA
• DSL Receiver (option)
