8K Optical Extender HDMI 2.1 – Standalone Type (OMB-HM)

Coming soon

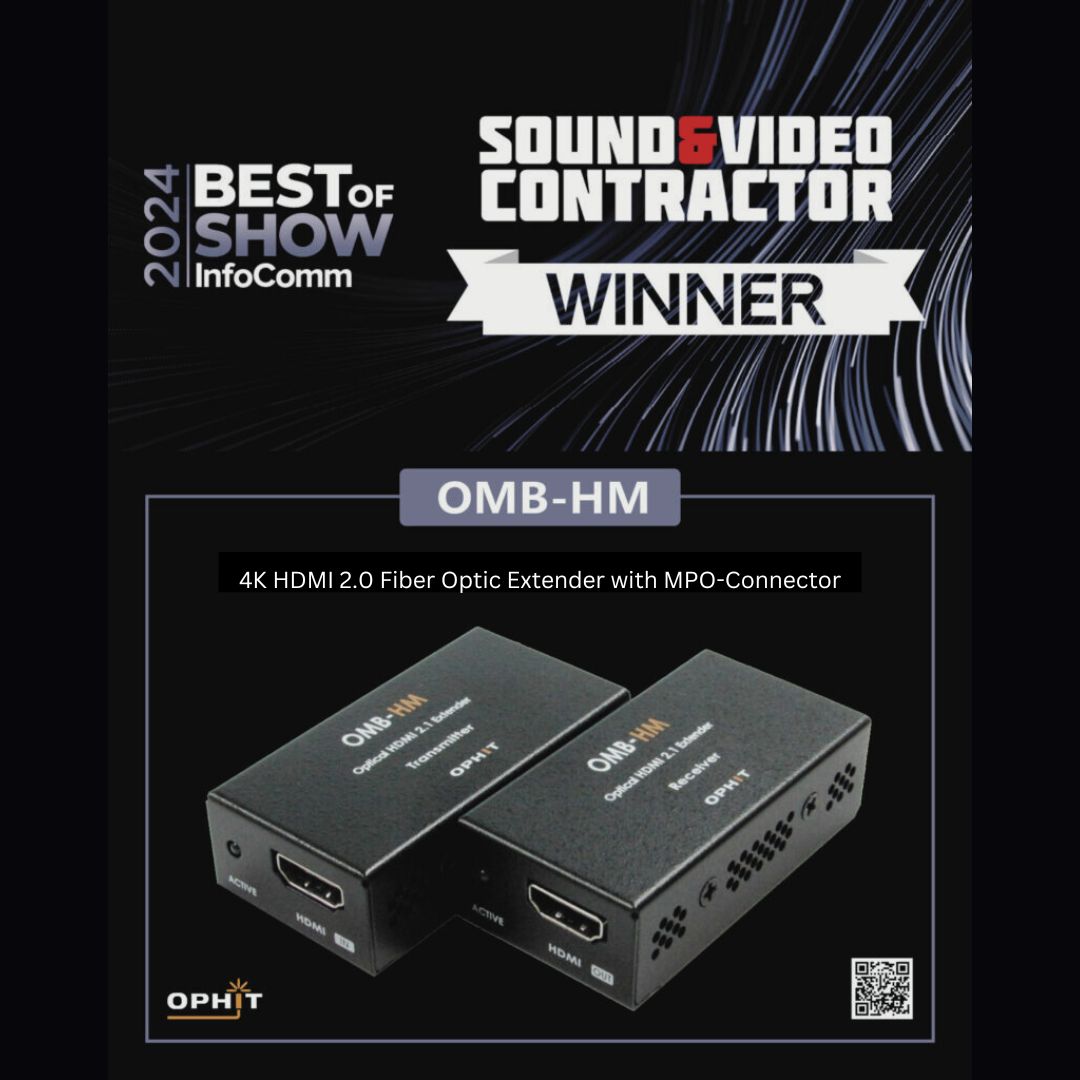

OMB-HM

OMB-HM is a Standalone Type HDMI 2.1 optical fiber extender that supports real 4k/8k UHD resolution (4096×2160, 7680×4320)

Capable of transmitting high-quality 4k/8k resolution up to 100 meters (330 ft) using optical multi-mode fiber without any video signal loss.

Signal:                        HDMI v2.1
Video Bandwidth:    48.0 Gbps
Resolution:                4K/8K UHD (up to 7680×4320)
Distance:                    100M (330 ft)
Connector/Fiber:     HDMI 19 Pin (male)

Downloads

Brochure



Coming soon



Overview:

OMB-HM is an HDMI 2.1 MPO type optical fiber extender that complies with HDMI 2.1 standard and supports real 4K/8K UHD (4096×2160, 7680×4320) resolution. It can transmit high-quality 4K/8K resolution up to 100 meters (330ft). This compact-size extender offers simple plug-and-play installation and electromagnetic interference (EMI) protection improves reliability and secures the connection between the source and device.

• Compatible with HDMI standard v2.1
• Supports OM3 (or OM4) fiber with MPO type connector
• CEC control, EDID, and HDCP
• EMI & Safety: CE, FCC
• 19RM-003 rack mount available



Tech Specs:

▪ Input and Output Signal: HDMI v2.1 Standard
▪ Video Bandwidth: 48.0 Gbps
▪ Dimension : 69W x 21.1D x 36.8H (mm) / 2.7″W x .83″D x 1.44″H (inches)
▪ Optical Source: VCSEL laser
▪ Connector: HDMI 19 Pin (Female) / MPO
▪ Applied Fiber: 8-core (or 12-core), MPO Fiber Cable (50/125um, OM3, Polarity type A)
▪ Maximum Supporting Resolution: 4K/8K UHD (up to 7680×4320 @60Hz)
▪ Transmission distance: 100 meters (330 ft)
▪ External Power: 5V / 2A (1.35ø DC JACK)
▪ Power Consumption (transmitter): 0.75W (Typ)
▪ Power Consumption (receiver): 0.95W (Typ)
▪ Operating Temperature Range: 0°C ~ 50°C
▪ Storage Temperature Range: -20°C ~ 70°C

Configuration:
